M-Core presents a collection of high quality compact phenolic panels and HPL for several interior and exterior applications, with a wide variety of textures and surface treatments, adapting the product, for its best performance, in different uses.

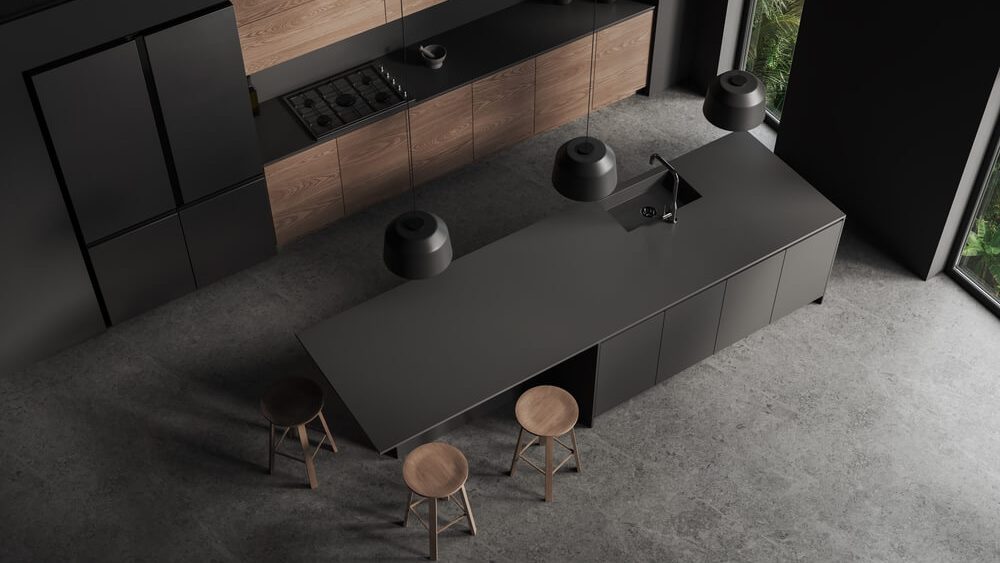

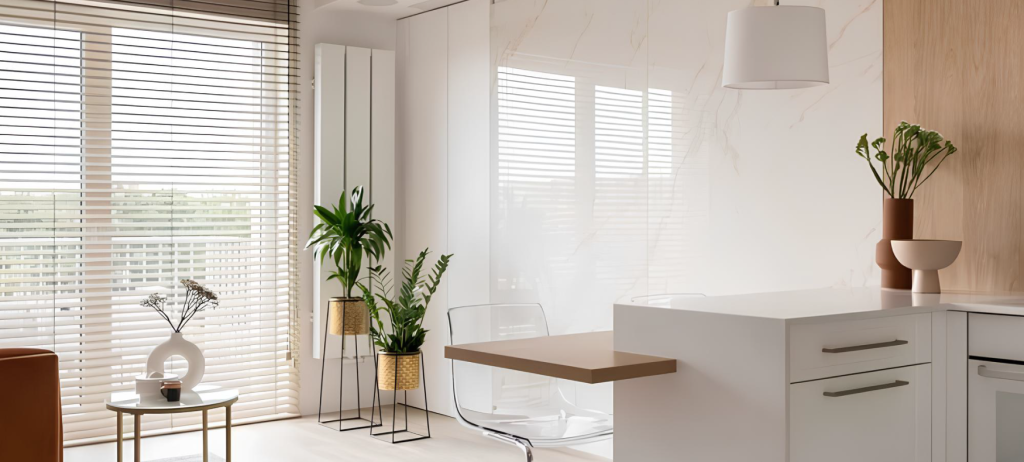

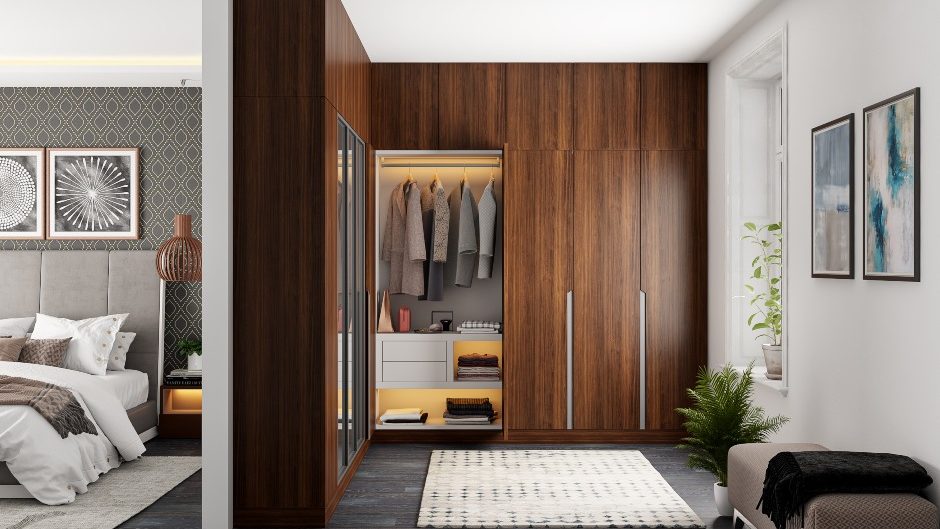

Applications: wall cladding, self supporting partitions and cabins, countertops, furniture and carpentry, doors, ventilated façades and outdoor equipment and furniture.
Benefits
Waterproof
Chemical-free
Impact Resistant
Scratch and Crack Resistant
Antibacterial
Decorative Multiplicity
Weather and UV Resistant
Low Maintenance
HPL
High Pressure Laminate sheet composed by Kraft agglutinated paper impregnated with thermosetting phenolic resins, bonded together by high pressure and high temperature process. It presents a flexible structure with one decorative surface coated with a protective layer, postforming in low thickness. Suitable for any interior environment, dry or humid in vertical or horizontal applications.
Available in two formats 2440x1220mm and 3050x1300mm, and available in big format in a selected range. HPL is supplied in thickness from 0,4mm up to 3mm.
Decorative Finishes
Available with different treatments according to each type of HPL and intended use.
| HPL Range |
| Range | Description | Thicknesses |
| PRO | Collection of a selected “premium” HPL range with 1mm thickness, presenting a sort of different material finishings with synchronized textured. | 1mm |
| Antibacterial | HPL with antibacterial properties, strongly reducing the rate of bacteria without frequent cleaning. | All range |
| Industrial | HPL reinforced with bicomponent laminate for superior mechanical strenght with greater dimensional stability. | Starting from 0,6mm |
| Touch | Anti-finger print and scratch resistant HPL with a soft-touch “supra matt” finish. Self-cooling capacity. | 0,8 to 1,2mm |
| Post Forming | HPL suitable for thermoforming with added flexibility for lower bending radius. This capacity allows seamless corners and a smooth surface. | 0,5mm to 0,8mm |
| Gloss Pro | High Gloss HPL collection with mirror effect (3x higher gloss). Also available the High Gloss Prelam Board Collection with MDF substrate. | Starting from 1mm |
| Metallic | Metal laminate with special “Feron” film, ensuring durability and metal appearance. | Starting from 0,8mm |
| Magnetic | HPL with magnetic properties. | 1mm |
| Eletroestatic | Anti-static HPL, resistant to solvents, static charges and preventing accumulated dust particles. | 0,7mm to 25mm |
| Digital | HPL for custom digital printing. Adaptable to each project aesthetic needs for interior or exterior use. | Starting from 0,8mm |
| Lab Pro | HPL resistant to chemical products and aggressive reagents. | Starting from 1mm |

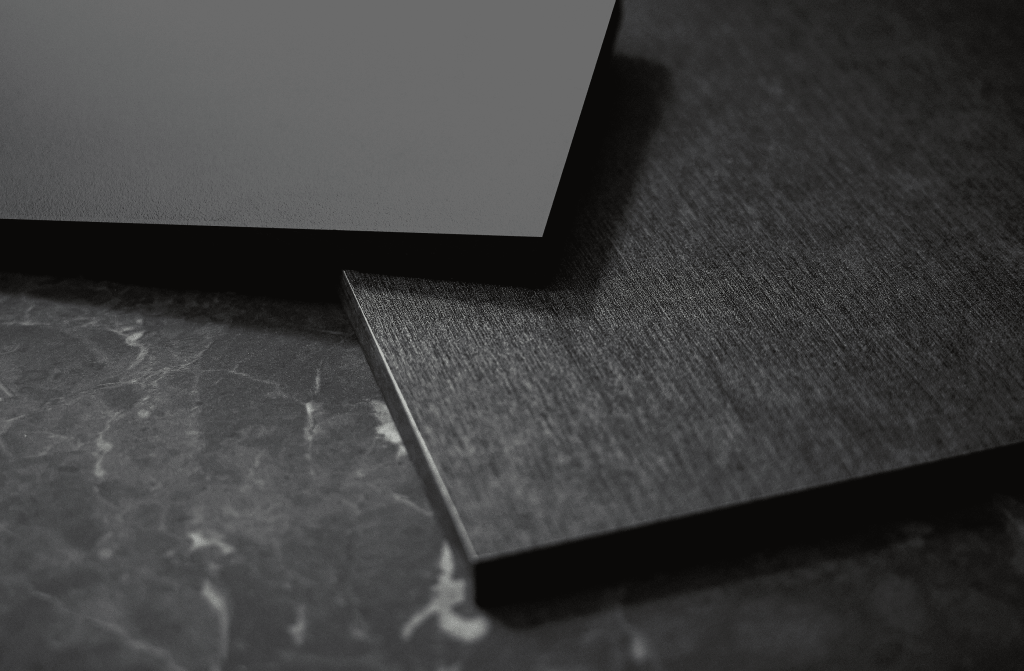

High-density compact panel composed by Kraft paper sheets impregnated with thermosetting phenolic resins. It presents both surfaces with a decorative High Pressure Laminate which confers stability and hardness for self-supporting applications.
| Compact Panel Range |
| Range | Description |
| Interior | Compact Panel with decorative top layer protected with thermosetting melamine resin on both sides, available with different attributes and features, adapting the panel to different uses and requirements in any type of interior use. Check M-Core HPL range or additional information. |
| Exterior | Compact Panel with decorative top layer protected with thermosetting melamine resin on both sides with protective overlay for exterior environment use. |
| Façade | Compact Panel with special treatment for prolonged exposure in facades, through an impregnation in acrylic-polyurethane resin that ensures superior resistace to UV exposure, weathering and ageing. |
| Fire Retardant | Compact Panel with higher performance against fire done by fire retardant Kraft paper layers. Fire reaction class B S1 D0, available in thickness 6 mm or more and fire raction class B S2 D0 for thicknesses under 6mm. |
| Sizes and Thicknesses |
| Thicknesses (mm) | 3 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
| 2440 x 1220 | x | x | x | x | x | x | x | x |
| 3050 x 1300 | x | x | x | x | x | x | x | x |
| 3660 x 1860 | xx | xx | xx | xx | xx | xx | xx | xx |
| 4320 x 1860 | xx | xx | xx | xx | xx | xx | xx | xx |
x – Available in all colours. / xx – Only interior grade and selected decors. To check colour Matrix.
